FLAUTO
Ο οίκος IRSAP S.p.a είναι ένας πρωτοποριακός κατασκευαστής στον τομέα θέρμανσης-κλιματισμού στην Ιταλία.
Η αρχική του δραστηριότητα ήταν η παραγωγή σωληνωτών θερμαντικών σωμάτων.
Σήμερα κατέχει περίπου το 80% της ιταλικής αγοράς στα σωληνωτά σώματα και είναι αδιαμφισβήτητα πρωτοπόρος στα θερμαντικά σώματα λουτρού.
Η δυνατότητα παραγωγής του εργοστασίου είναι τριάντα δύο χιλιάδες (32.000) στοιχεία της σειράς TESI ημερησίως και ένα εκατομμύριο διακόσιες χιλιάδες(1.200.000) τεμάχια σωμάτων λουτρού ετησίως.

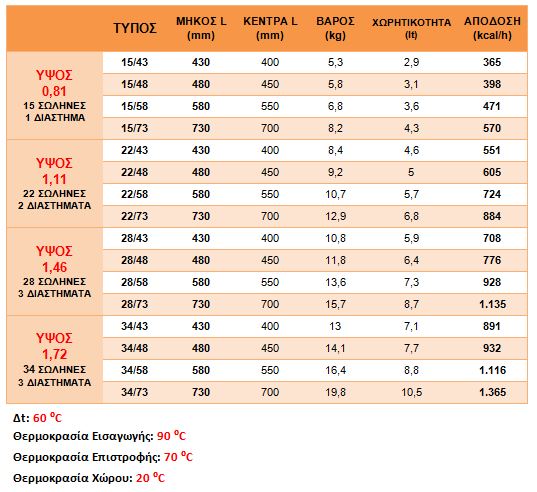

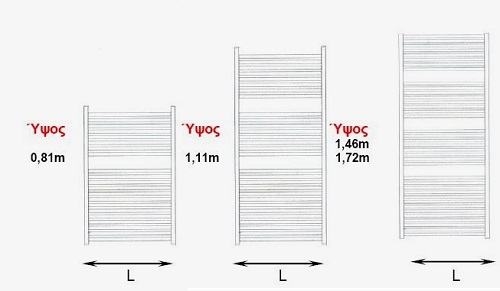

| Model | Deph (mm) | Height (mm) | Width (mm) | Conn. C. (mm) | Weigth (kg) | Capacity (lt) | COM_PRODUCTS_TABLE_DATA_BTU | Δt=50°C (kcal/h) | Δt=50°C (Watt) | Δt=40°C (Watt) | Δt=30°C (Watt) | Δt=20°C (Watt) | Exponent | mixed oper. (Watt) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 810 20 rails 2 espaces | 46,0 | 810 | 456 | 406 | 5,60 | 2,80 | 1.402,0 | 353,0 | 411,0 | 316,0 | 225,0 | 139,0 | 1,179 | 400 |
| 810 20 rails 2 espaces | 46,0 | 810 | 506 | 456 | 6,10 | 3,00 | 1.522,0 | 384,0 | 446,0 | 343,0 | 244,0 | 152,0 | 1,177 | 400 |
| 810 20 rails 2 espaces | 46,0 | 810 | 556 | 506 | 6,50 | 3,10 | 1.642,0 | 414,0 | 481,0 | 370,0 | 264,0 | 164,0 | 1,175 | 400 |
| 810 20 rails 2 espaces | 46,0 | 810 | 606 | 556 | 7,00 | 3,30 | 1.764,0 | 445,0 | 517,0 | 398,0 | 284,0 | 176,0 | 1,173 | 400 |
| 810 20 rails 2 espaces | 46,0 | 810 | 756 | 706 | 8,40 | 3,90 | 2.127,0 | 536,0 | 623,0 | 480,0 | 343,0 | 214,0 | 1,167 | 400 |
| 1218 30 rails 3 espaces | 46,0 | 1218 | 456 | 406 | 8,40 | 4,10 | 2.044,0 | 515,0 | 599,0 | 460,0 | 327,0 | 202,0 | 1,187 | 400 |
| 1218 30 rails 3 espaces | 46,0 | 1218 | 506 | 456 | 9,10 | 4,40 | 2.212,0 | 558,0 | 648,0 | 498,0 | 354,0 | 219,0 | 1,184 | 700 |
| 1218 30 rails 3 espaces | 46,0 | 1218 | 556 | 506 | 9,80 | 4,70 | 2.380,0 | 600,0 | 698,0 | 536,0 | 382,0 | 236,0 | 1,181 | 700 |
| 1218 30 rails 3 espaces | 46,0 | 1218 | 606 | 556 | 10,50 | 5,00 | 2.548,0 | 642,0 | 747,0 | 574,0 | 409,0 | 254,0 | 1,177 | 700 |
| 1218 30 rails 3 espaces | 46,0 | 1218 | 756 | 706 | 12,50 | 5,90 | 3.051,0 | 769,0 | 894,0 | 689,0 | 492,0 | 307,0 | 1,168 | 700 |
| 1558 38 rails 4 espaces | 46,0 | 1558 | 456 | 406 | 10,60 | 5,20 | 2.613,0 | 658,0 | 766,0 | 586,0 | 415,0 | 255,0 | 1,200 | 700 |
| 1558 38 rails 4 espaces | 46,0 | 1558 | 506 | 456 | 11,50 | 5,60 | 2.844,0 | 717,0 | 834,0 | 639,0 | 454,0 | 280,0 | 1,191 | 700 |
| 1558 38 rails 4 espaces | 46,0 | 1558 | 556 | 506 | 12,40 | 6,00 | 3.075,0 | 775,0 | 901,0 | 692,0 | 493,0 | 305,0 | 1,181 | 700 |
| 1558 38 rails 4 espaces | 46,0 | 1558 | 606 | 556 | 13,20 | 6,40 | 3.307,0 | 833,0 | 969,0 | 746,0 | 533,0 | 331,0 | 1,172 | 1000 |
| 1558 38 rails 4 espaces | 46,0 | 1558 | 756 | 706 | 15,90 | 7,50 | 4.001,0 | 1.008,0 | 1.172,0 | 908,0 | 654,0 | 411,0 | 1,144 | 1000 |
| 1762 44 rails 4 espaces | 46,0 | 1762 | 456 | 406 | 12,20 | 6,00 | 3.048,0 | 768,0 | 893,0 | 682,0 | 482,0 | 295,0 | 1,207 | 700 |
| 1762 44 rails 4 espaces | 46,0 | 1762 | 506 | 456 | 13,20 | 6,50 | 3.293,0 | 830,0 | 965,0 | 739,0 | 523,0 | 322,0 | 1,199 | 1000 |
| 1762 44 rails 4 espaces | 46,0 | 1762 | 556 | 506 | 14,30 | 6,90 | 3.538,0 | 892,0 | 1.037,0 | 795,0 | 565,0 | 349,0 | 1,190 | 1000 |
| 1762 44 rails 4 espaces | 46,0 | 1762 | 606 | 556 | 15,30 | 7,30 | 3.783,0 | 953,0 | 1.109,0 | 852,0 | 606,0 | 376,0 | 1,181 | 1000 |
| 1762 44 rails 4 espaces | 46,0 | 1762 | 756 | 706 | 18,30 | 8,60 | 4.518,0 | 1.139,0 | 1.324,0 | 1.023,0 | 734,0 | 460,0 | 1,155 | 1000 |
