4kW-16kW R32 M Thermal A Series Mono/Split
Functions & Features

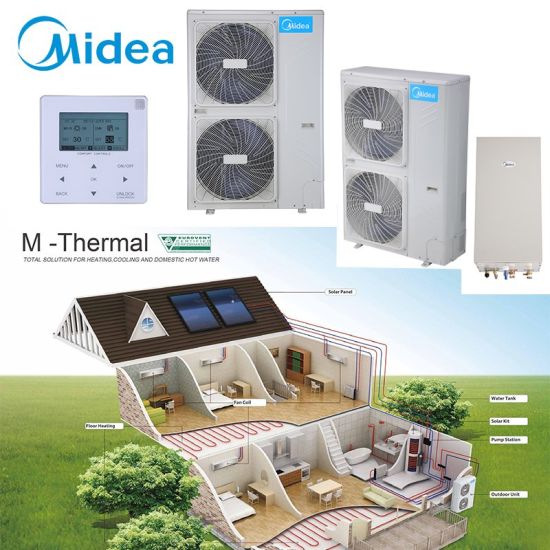

Midea's M-Thermal Arctic Series heat pump with environmentally friendly R32 refrigerant can be combined with any system for heating, cooling and domestic hot water production. A built-in water tank is included for installation flexibility and Wi-Fi for control from anywhere. Suitable for applications with water temperature up to 65 °C.
| Power Supply (Ph-V-Hz) | 220-240/1/50 |
| Heating Capacity (kW,Evaporator air in 7°C, 85% R.H., Condenser water in out 30 35°C) | 4.20~15.9 |
| Heating Capacity (kW,Evaporator air in 7°C, 85% R.H., Condenser water in out 40 45°C) | 4.30~16.0 |
| Heating Capacity(kW,Evaporator air in 7°C, 85% R.H., Condenser water in out 47 55°C) | 4.40~16.0 |
| Cooling Capacity (kW,Condenser air in 35°C. Evaporator water in out 23 18°C) | 4.50~14.9 |
| Cooling Capacity (kW,Condenser air in 35°C. Evaporator water in out 12 7°C) | 4.70~14.0 |
| Net dimensions (W×H×D)(mm) | (1295×792×429)~(1385×945×526) |
| Packed dimensions (W×H×D)(mm) | (1375×965×475)~(1465×1120×560) |
| Net weight(kg) | 95~133 |
| Gross weight(kg) | 110~161 |
| Ambient temp.operation range(Cooling)(℃) | -5~43 |
| Ambient temp.operation range(Heating)(℃) | -25~35 |
| Ambient temp.operation range(DHW)(℃) | -25~43 |
| Water outlet temp. range(Cooling)(℃) | 5~25 |
| Water outlet temp. range(Heating)(℃) | 25~65 |
| Water outlet temp. range(DHW)(℃) | 40~60 |
